    JY308 Jan 10, 2025
I'm sorry, I'm a little confused. When you say "no need to modify the "FIELD.BIN", do you mean update all of the other files listed in the Hex Codes to the new value but leave FIELD.BIN untouched? I did try that and the "flight around the village" scene loaded but the field of view visibly hadn't expanded to anamorphic widescreen.

When all 6 of the files are updated to the new hex value, the "flight around the village" scene doesn't visibly load and the screen remains black. I tried waiting several minutes but nothing changes even when I press start. Also I didn't notice this before since the television was on mute but the music which plays during the "flight around the village" scene begins to play but then loops the same several notes continuously, specifically when the bagpipes kick in. The black screen and looping music goes on until the console is turned off.

    paul_met Jan 10, 2025
If you start a new game, it is better not to modify the file "FIELD.BIN" so that the initial scene does not freeze (all other files need to be modified). When the control passes to the player, go to the settings menu or the inventory menu, and then exit back - the screen will update and become widescreen.

    JY308 Jan 10, 2025
Okay, I see what you mean. Once I selected the menu and hit back, the field of view updated to the desired proportions.



There is one catch to this setup however. When I went from the village to the docks (i.e. loaded a new area), the field of view reverted back to the original settings.



Going to the menu and hitting back did correct it again but this seems this happens whenever entering a different area. Is there any way to permanently fix this? I assume using the bin/cue with the updated "FIELD.BIN" after creating an initial save file would resolve this specific issue but are there any other parts of the game where it would crash when using the updated "FIELD.BIN"?

    paul_met Jan 11, 2025

  JY308 said:

Anything is possible. You won't know until you try. After all, the game wasn't designed to support widescreen, and it will remind you of that from time to time.

    JY308 Jan 11, 2025
That makes sense. Thanks for your help. I've used many of your widescreen patches for Sega Saturn games in the past but this was the only one that ever gave me trouble.

    xhul Apr 28, 2025
Hello there =]
I may have a couple questions regarding the the story of thor 2 hack, more specifically when the NTSC patch is applied.
Is it stable?
Also, the extra resolution aside, is the game speed comparable to the original NTSC version (USA or JAP)?

    paul_met Apr 29, 2025

  xhul said:

If you have any doubts, why not check everything yourself?

    xhul Apr 29, 2025

  paul_met said:

Fair enough, i'll give it a shot when i can, i needed a CD-ROM refill anyway.
It won't be an actual NTSC signal, since my machine is outputting PAL-60 (accurate 60Hz though, i have a DFO installed).
I'll let you know if i encounter something unexpected.
Thanks =]

    USO May 27, 2025

  paul_met said:

Hello, can you help me create a widescreen 1ST_READ.PRG file for Armored Dragon Cavalry Legend (J)? Please use the attachment file I uploaded. thank you!!
(J)1ST_READ.PRG

    privateye Jun 15, 2025

   xhul Jun 15, 2025

  privateye said:

Big thanks for your time!

    privateye Jun 17, 2025

  USO said:


Azel: Panzer Dragoon RPG [NTSC-J]
Code:

File: 1ST_READ.PRG Offset: 0x2AC39 Old Value: 01 19 99 New Value: 00 D1 74
Panzer Dragoon Saga [PAL / NTSC-U]
Code:

File: 1ST_READ.PRG Offset: 0x2AD45 Old Value: 01 19 99 New Value: 00 D1 74

   privateye Jun 21, 2025
Widescreen patches :

Cyber Troopers Virtual-On NetLink Edition

Code:

File: VO\SLCT_NML.MFD Offset: 0x185E Old Value: 01 45 New Value: 00 F3 File: VO\VOX.BIN Offset: 0x3F99 Old Value: AA New Value: 47 File: VO2\SLCT_NML.MFD Offset: 0x19D3 Old Value: 01 45 New Value: 00 F3 File: VO2\VO.BIN Offset: 0xAE4D Old Value: AA New Value: 47 File: VO2\VOMOV.BIN Offset: 0x2D49 Old Value: C0 New Value: 58 Offset: 0x6F3D Old Value: 03 New Value: C3 Offset: 0x6FB6 Old Value: 00 New Value: 56

Cyber Troopers Virtual-On for SegaNet

Code:

File: VO\SLCT_NML.MFD Offset: 0x184A Old Value: 01 45 New Value: 00 F3 File: VO\VOX.BIN Offset: 0x3F3D Old Value: AA New Value: 47 File: VO\VOMOV.BIN Offset: 0x2D71 Old Value: C0 New Value: 58 Offset: 0x6F65 Old Value: 03 New Value: C3 Offset: 0x6FDE Old Value: 00 New Value: 56

Dead or Alive [v1.002]

Code:

Too many changes to list!

Die Hard Trilogy [NTSC-J]

Code:

Game: Die Hard 2 File: DH2.exe Offset: 0x8166A Old Value: 10 New Value: 0C Game: Die Hard 3 File: DH3.exe Offset: 0x7A536 Old Value: 10 New Value: 0C

Die Hard Trilogy [NTSC-U]

Code:

Game: Die Harder File: DH2.exe Offset: 0x8131A Old Value: 10 New Value: 0C Game: Die Hard with a Vengeance File: DH3.exe Offset: 0x7A012 Old Value: 10 New Value: 0C

Duke Nukem 3D [NTSC-U]

Code:

File: DUKE\0 Offset: 0x4E49A Old Value: 2C 32 60 93 New Value: EB 01 2C B1 Offset: 0x4E49F Old Value: 50 New Value: 08 Offset: 0x4E5BA Old Value: 00 New Value: 56 Offset: 0x6C7BD Old Value: 01 00 New Value: 00 C0

Formula Karts: Special Edition

Code:

File: 0 Offset: 0x1C6C7 Old Value: 40 New Value: AA

Panzer Dragoon [NTSC-J]

Code:

File: 1ST_READ.PRG Offset: 0x226B5 Old Value: AF New Value: 83

Sega Rally Championship [NTSC-J]

Code:

File: 0RALLY.DAT Offset: 0xC2C9 Old Value: 01 10 New Value: 00 CC

Sega Rally Championship [NTSC-U]

Code:

File: 0RALLY.DAT Offset: 0xC13D Old Value: 01 10 New Value: 00 CC

Sega Rally Championship [PAL]

Code:

File: 0RALLY.DAT Offset: 0xC359 Old Value: 01 10 New Value: 00 CC

Sega Rally Championship Plus [NTSC-J]

Code:

File: RALLY\0 Offset: 0xC3B1 Old Value: 01 10 New Value: 00 CC

Sega Rally Championship Plus NetLink Edition [NTSC-U]

Code:

File: RALLY\0RALLY.DAT Offset: 0xC3F5 Old Value: 01 10 New Value: 00 CC

Wipeout XL [NTSC-J]

Code:

File: 0.AAA Offset: 0x6B59D Old Value: 01 00 New Value: 00 C0

Wipeout 2097 [PAL]

Code:

File: 0.AAA Offset: 0x6B7A5 Old Value: 01 00 New Value: 00 C0

Zero Divide: The Final Conflict

Code:

File: AAA.AAA Offset: 0x2A17E / 0x341BE Old Value: 01 New Value: 21 Offset: 0x11381 (Emulator patch only) Old Value: 01 00 New Value: 00 C0

   USO Jul 24, 2025

  privateye said:

Thank you

    USO Jul 26, 2025

  USO said:

IIJ?
Hello, could you help me create a widescreen file for Panzer Dragonoon II ZweiJ

    privateye Jul 27, 2025

  USO said:

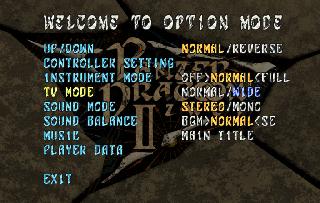

In the options menu, set TV Mode to Wide.


    USO Jul 27, 2025

  privateye said:

Thank you

    mattw77777 Aug 22, 2025
i tried to patch the story of thor 2 using cdmage and when i went to save the .bin it gave me an error saying "cannot write to file c:\*****.bin"
also the v1.3 patch download link is down

    Kirrap Oct 18, 2025

  TrekkiesUnite118 said:

I know I'm a few years behind on these hacks, I'm just finding out about everything they've done with this console and I was just looking for a patch that could make the resolution of Capcom fighting game ports more similar to arcade ones, I understand that they can't increase the vertical resolution, but reduce the width? Is it possible to get slimmer characters?

Thanks in advance

    TrekkiesUnite118 Oct 23, 2025

  Kirrap said:


Capcom's CPS2 games use 384x224 resolution, which is technically a 16:10 resolution but squished into a 4:3 frame. The closest resolution the Saturn has to that is 352x224. That's what the Capcom CPS2 ports all use with the original arcade assets. Lowering the resolution won't make the characters slimmer, it will just make them fatter. Going up to 640 wide wont help either. So 352x224 is the best option available on the Saturn as you can use the arcade assets as is and still get pretty close. If you want slimmer characters on Saturn's resolutions you would have to redraw all the assets for that resolution.
