Where can i get a replacement for the saturn controller ribbon cable?

Amiceli1983 - Apr 29, 2021

		Amiceli1983		Apr 29, 2021
			Hi I'm looking for a replacement of the controller ribbon cable on a model 2..mine has a bent pin.. I figure it's a 24 pin 1mm pitch, is that correct?

		antime		Apr 29, 2021
			Search for FFC/FPC cables on electronics distributors like Mouser or DigiKey.

		eems01		Aug 20, 2021

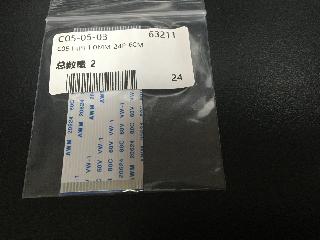

			Any luck finding the correct cable? I ordered 1.0mm 24pin cable but the pins are not as thick and cable not as wide as the original. Took a picture with ruler of the original and 1.0mm cable on top. Based on the formula I found on Digi-Key this looks to be a ~1.25-1.3 pitch cable. Cable Width / (# of conductors + 1) = Pitch. ~31.25 mm/ (24+1) = 1.25 mm

		Amiceli1983		Aug 21, 2021
			eems01 said: I found one off ebay.. it took awhile..it's not on sale often.. but this is good info for reference, their not much info about controller ribbon for replacement online

		eems01		Sep 20, 2021
			Found a plug and play solution on eBay overseas as well. Took a few weeks to get here but works perfectly. Confirmed it is definitely 1.25mm pitch. At 150mm long probably double length it needed to be but simply doubled over and fits nicely under drive.

		CheoChessman		Sep 21, 2021
			eBay all the way
