Saturn Action Replay Plus 4M Auto Board Scans & Measurements (1200 DPI)

RazorX - Mar 28, 2022

		RazorX		Mar 28, 2022

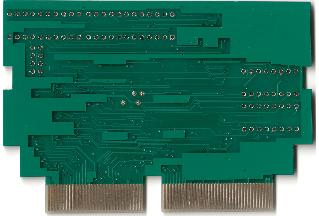

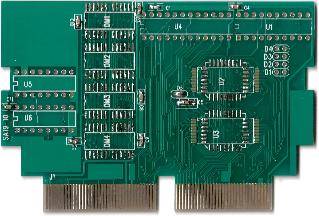

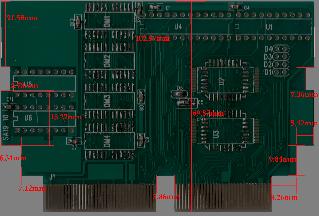

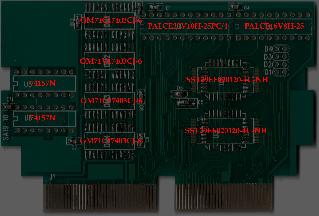

			As the title suggests i have stripped and scanned my sega saturn action replay and scanned in the motherboard at 1200 dpi so you can see and follow any of the traces for anyone who is interested in recreating or modding it. Front: Back: Board Measurements: Main Components: Notes: C3, C4, C5, C7, C8, C9, C10 and C11 all tested as 0.79uF i'm not sure what C1 is, there was no reading from it and no continuity. D1, D2, D3, D4 are 1N4148 fast switching diodes

		xrider		Mar 28, 2022
			Thanks RazorX

		L2000		Mar 28, 2022
			Thanks @RazorX...

		RazorX		Mar 28, 2022
			xrider said: L2000 said: you're welcome, hopefully now someone will create schematics for people to use and perhaps add a proper ram switch since for some reason the action replay doesn't really work correctly for ram games despite it saying it's supposed to be auto lol. it would be nice to see a switch added that incorporates my dual boot mod

		RazorX		Mar 29, 2022
			updated main post with board measurements, components list and datasheets.

		antime		Sep 1, 2022
			If you have the necessary equipment, it'd be cool if you could try extract the logic equations... from the PALs.
