Translating Grandia 1.1.1

TrekkiesUnite118 - Sep 9, 2018

< Prev

...

Next>

		TrekkiesUnite118		May 6, 2019

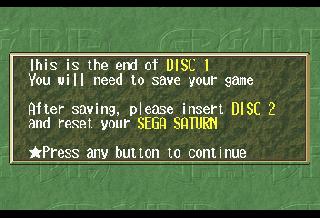

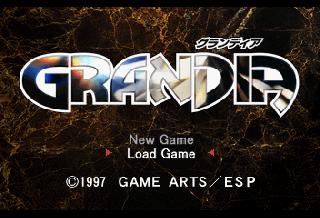

			So I've figured out how some of the DAT files work for certain screens. Basically these files define their own custom tile set and then plot out the tiles line by line for the screen in 0x80 byte segements. The odd gotcha here is that of the 0x80 bytes, the first 0x28 bytes are repeated. So it's really only 0x58 bytes that define each line, and it takes 2 bytes to define each tile. So this comes out to 44 tiles per row, or 352 pixels per row. Which makes sense since that's the resolution the game runs at for these screens. As a result I've been able to translate the end of Disc 1 Screen and clean up the Title Screen a bit. These changes will be in the next patch release.

		HenFjo		May 8, 2019
			Shoutout to @TrekkiesUnite118... for amazing work. Just discovered this thread and I admire the work you do. While I was digging around I found an old promotional flyer for the Japanese release of Grandia for the Saturn. I think this artwork would fit nicely as an North American style cover, seeing as other members on the forum have posted some covers themselves. But I lack the Photoshop skills to transform the flyer into that of a late gen NA Saturn front cover. Keep up the good work going forward

msimplay

May 9, 2019

		retrodadandmodernlad said:

Did you manage to get passed the Twin Towers? I got stuck right after the dialog at the end with Leen

retrodadandmodernlad

May 9, 2019

		msimplay said:

Hey, I haven't been able to play much this week with other commitments. but have been playing tonight and just logged on myself to do an update stating the same as you have already said. The screen is going black and its freezing by the glowing statue at the top of twin towers. I have tried it twice and it happened both times. I will follow this message up with another one in a minute showing the nearest save point details from the debug disc.

msimplay

May 9, 2019

		retrodadandmodernlad said:

I managed to get to this part right at the end

https://youtube.com/Px1Fqecof00

then it froze was unable to move.
Will try again now see if it happens

retrodadandmodernlad

May 9, 2019

		msimplay said:

did you manage to save it at that save point you were by... as that is closer than my save point which is the one before. mine actually crashed slightly before your one the twice I tried it

		retrodadandmodernlad		May 9, 2019
			here are the save point details from the debug disc for the save point close to were the crashing occurred on mine. it is fairly close and the exact moment it happened both times was at the top when you go towards the glowing object and leena says "aaack Justin" the screen goes black and the game just stays black. Hope this information helps.

msimplay

May 9, 2019

		retrodadandmodernlad said:

I didn't manage to save it got stuck same place twice right next to the save

Dropbox - VIDEO0165.mp4 - Simplify your life...

retrodadandmodernlad

May 9, 2019

		msimplay said:

yes, so there very close together yours is like a minute after mine, just abit further in the same sequence. that save point detail I have provided is not that far away from the issue.

retrodadandmodernlad

May 9, 2019

		msimplay said:

ps have you patched yours with the English voices?

msimplay

May 9, 2019

		retrodadandmodernlad said:

Will run the Debug disc on it

I'm running on a mod chipped Japanese Saturn with Taio Yuden CDR's as my Rhea Saturn packed up need repair

		retrodadandmodernlad said:

No check my second video that is the one that I'm actually running the one on youtube was just an example as I hadn't taken the video at that point

retrodadandmodernlad

May 9, 2019

		msimplay said:

o right. just watched your clip. yes its practically the same place as mine. I am playing using pseudo saturn/ disc onmy Japanese hi-Saturn .

		msimplay		May 9, 2019

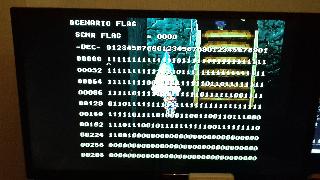

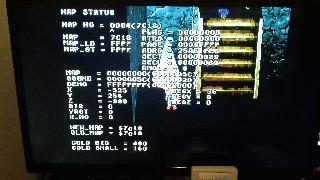

			These are my debug screens

		TrekkiesUnite118		May 10, 2019
			Sorry, just now seeing this. I'll see what I can figure out after work tonight.

msimplay

May 10, 2019

		TrekkiesUnite118 said:

Thanks any idea on why we have the difference between where we crash? Both using real hardware

TrekkiesUnite118

May 10, 2019

		msimplay said:

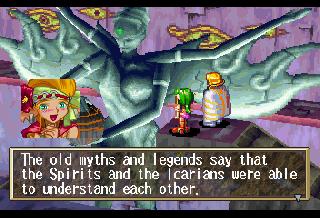

So I wont know until I start debugging it. I'm trying it out right now, were the portraits correct for you guys? Reason being is they're way off for me but that sometimes happens when you jump around between maps in debug mode:

msimplay

May 10, 2019

		TrekkiesUnite118 said:

Yes I had no issues with character portraits

TrekkiesUnite118

May 10, 2019

		msimplay said:

Oh thank god. That would have been a nightmare to correct.

As for the issues,

@retrodadandmodernlad... , your issue is definitely burn related. I wasn't able to reproduce it and it's happening right when the game is trying to play an FMV. So that's probably why yours happened sooner.

@msimplay... yours is a legit crash. I'll dig into it and see if I can find out what's happening. My guess is a different command flag or something between versions again.

EDIT: On a side note, I noticed some 8x16 Japanese characters, however this isn't untranslated text. The characters are speaking in a foreign language in these parts. In the Japanese version there's special 16x16 characters for this, in the PS1 version they made new 8x16 characters for it. However these aren't in the 8x16 Saturn font and it's just using the the 8x16 Japanese characters that are in those same places in the font table. So at some point I'll need to fix that.

		TrekkiesUnite118		May 10, 2019
			Ok, I think I have it fixed. This should fix the hang when Leen leaves at the end of the Twin Towers. It also includes the translated end of Disc 1 Screen and the Title Screen update.

		themadhaxor		May 11, 2019
			@TrekkiesUnite118... - thank you again for all your hard work, will try this after work tonight... @retrodadandmodernlad... - how did you patch in the English voices, is it simple file replacement from the PSX version? [details if you please good sir ]
