Translating Grandia 1.1.1
TrekkiesUnite118 - Sep 9, 2018

 < Prev  1  ...  18  19  20  21  22  ...  48  Next>

 TrekkiesUnite118 Sep 27, 2019

nanash1 said:


So I've found more compressed graphics data. The graphics for things like the Characters Names at the top of the Screen, the yellow text for the tactics you choose, and things like the pop ups for words like "Counter", "Miss", as well as weapon and skill level ups appear to be compressed and stored in every BBG file.

At a quick glance it looks like it might be going into a similar kind of compression as the other data, but when I try the decompression tool it gives me an error saying "Compression Table Invalid". So I'm guessing there's another compression table somewhere that it's using.

The data can be found in either B001.BBG at offset 0x10D96 or in the full data track iso at offset 0x26596. The decompressed data get's written to 0x4000 in VDP1's VRAM.

 samson7point1 Sep 28, 2019

samson7point1 said:

Just to close the loop on this, I went back to re-verify my results. TLDR; I can get matching checksums from my original rips now.

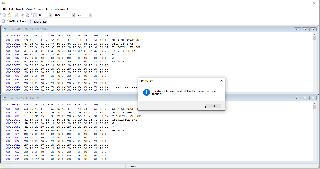

I made the faulty assumption that the data would be equivalent when extracted by different tools, and therefore the erroneous statement that I followed the process in your README exactly. I stopped using ISOBuster years ago because I had other tools that did ostensibly the same thing but didn't limit functionality or constantly nag me to pay for a license. I was getting different file sizes and checksums because I originally used the 7zISO plugin to checksum and extract the data track. When I re-ripped everything I decided to dig up an old copy of ISOBuster I had lying around and compare what it was producing vs 7zISO. When I extracted the data with ISOBuster suddenly I got the checksums in your readme, but I knew 7zISO worked because I've successfully used it to extract and write back tracks with other projects. HxD gave me this when I compared the ISOs:



FWIW, these are the sums I got with 7zISO for Disc 1 Track 1:
CRC32: F84B3738
MD5: 062b7ef1dbe261002c5f87e76cdd0345
SHA-1: 38da4c1a55aba4ce5418d4fc35d83e7c04855c80
Size: 540,094,464 bytes

If 7zISO was doing something silly like extracting the ISO in 2352 instead of 2048, I would expect to see extra data (and for the size difference to be closer to 76MB rather than 1.5MB), likewise if it was zero-padded. Both are valid files, and based on this, I *think* the patch would work just fine even though the sums don't match because the offsets would all presumably be the same. Anyway, PEBKAC error sorted!

 nanash1 Sep 28, 2019

TrekkiesUnite118 said:

Ok. I will look into it when I'm back home from the weekend.

 TrekkiesUnite118 Sep 28, 2019

nanash1 said:

Thanks. In the mean time I've put up a video showing the progress made on the battle menus and the result screen. I think I have everything except the compressed bit I mentioned earlier:

https://youtube.com/fDljmtpKZOg


 nanash1 Sep 29, 2019

TrekkiesUnite118 said:



Nice work!

I fixed the bug in the compression tool. The first problem was that the offset wasn't correct. The correct offset for disc 1 is 0x25ebc. The second problem was that this image file starts on table compressed data. This case wasn't handled in my tool until now.

 TrekkiesUnite118 Sep 29, 2019

nanash1 said:


Thanks! I'll give this a try and see what I can do.

 bmn Oct 5, 2019

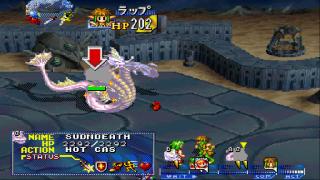

Not sure if this is a bug/known etc. In the first Alent boss Hydra, the enemy Hot Head is instead called SUDNDEATH (one of the moves another enemy in the same boss performs). I don't think there's anything else up with this boss.


#s

 TrekkiesUnite118 Oct 6, 2019

bmn said:


Was probably a copy paste mistake. I have it fixed and it will be in the next patch release.

 plat Oct 7, 2019
@nanash1... Just thought I'd mention that compiling your compression tool on Linux (glibc) fails with this error:
Code:

/usr/include/bits/byteswap.h:20:3: error: "Never use  directly; include  instead."
# error "Never use  directly; include  instead."

Doing as it says and using allows it to compile successfully.

To check for any other portability issues, I ran scan-build and cppcheck static analyzers. While there didn't appear to be any, they did pick up a few possible issues. I've included their reports and warning output from clang in the attachment if you're interested in them; all you should need to do to view them is open the index.html files inside the cppcheck and scan-build report directories and the clang_warnings.txt file.

I also included the generic Makefile I modified for this tool which produces a debug-friendly binary.

For what it's worth, this used v090 since v095 source isn't available.

 nanash1 Oct 7, 2019
Well, to do a proper Linux version you'd have to check the systems endianess and determine if the use of byteswap is necessary in the first place since afaik Linux isn't always little endian.

 TrekkiesUnite118 Oct 7, 2019

nanash1 said:


So if it's not too much trouble, if you comment your code really well so I can easily follow what's going on (mainly because my C/C++ is very rusty/poor), I can see if I can convert it over to Java and then in theory it would be platform independent.

 nanash1 Oct 7, 2019
If everything is working with the last update I could refactor a few things, improve the comments and push the version to 1.0. I didn't included the source in the latest version, because my quick bug fix used the evil goto statement.

 nando Oct 7, 2019
Would you be open to make it a GitHub repository? People could fork it from there to whatever platform/language they liked. It seems to me that it's an interesting enough tool, even outside of the Grandia translation project.

 nanash1 Oct 8, 2019

nando said:

I've never used github before, but I can look into it. However, it'll be a while since I'm currently away on vacation.

 Drazham Nov 1, 2019
Reading the thread about the proccess on dumping the english traduction directly on the ROM, would it be possible to do the same on Grandia Ditigal Museum? Just only talking about the texts on the menu and combats, believing that it will use the same code or a similar one.

 votemarvel Nov 2, 2019
I've registered just to say thank you for working on this patch. I own the game for my Playstation but it is going to be nice having it in English for my Saturn as well.

 themadhaxor Nov 4, 2019
Looking forward to the next patch release
Any news from behind the scenes?

 TrekkiesUnite118 Nov 5, 2019

themadhaxor said:


I'm still working on it. I've just been busy helping out with some of the issues the Sakura Wars team has been having lately.

For Grandia though I do have the compressed battle graphics ready to go, the problem is they need to go into every BBG file in the game. So I need to write a tool to break those files down and rebuild them so I can insert the new data more easily and with less chances to screw something up.

Also digging more into the FMVs, it's looking like they may actually be a very early variant of CRI's MPEG Sofdec codec. So if we can figure out how to get the Quick Time containers off of them, it shouldn't be to hard to use existing tools to decode and re-encode them I'd imagine. However this is still a lot of speculation.

 Ardiloso Nov 5, 2019
I'm liking the patch delay because real life hit me hard and I don't have time to resume my playthrough.
@TrekkiesUnite118... when you figure out the fmv compression/decompression, I can provide you with the much superior fmvs from the HD remaster if you want/can use them to compress back into the game since I've bought it on steam.

 darknior Nov 6, 2019
Thanks a lot for all your work, it's really amazing
