Sega Saturn Sample by Sega

vbt - Apr 2, 2018

< Prev

Next>

		mrkotfw		Apr 22, 2018
			Thanks for the information. Were you able to trigger it in Yabause? Maybe we can get a state save and explore a bit.

vbt

May 8, 2018

		mrkotfw said:

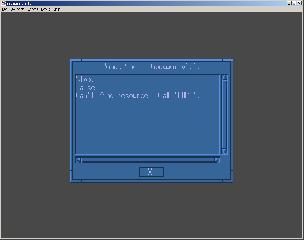

i edited a file (manual.res) to be sure to get the error (i replaced TAK0 string) then when i display the game manual i get always :

on yabause it's harder, it got difficulties to display the text :

EDIT : I get the error because the CD seems to be badly rebuilt, after choosing a pinball, i get a new error window and i can control the cursor and click on EXIT.

		mrkotfw		May 8, 2018
			Thanks, I'll take a look to see if I can trigger it.

		mrkotfw		May 8, 2018
			Can you dump what VDP2 and VDP1 show in Yabause? I'm interested in seeing what they used. Does the cursor work?

		vbt		Apr 14, 2019

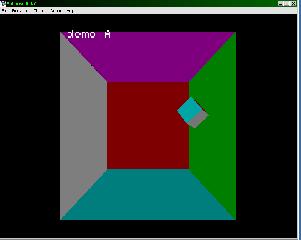

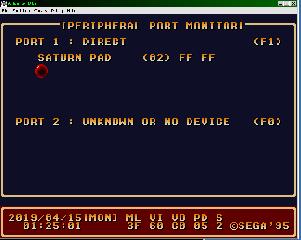

			SMPC SAMPLE PROGRAM Ver.0.56a start address : 06010000 file name : sl1.bin Backup Library Demo Program start address : 06010000 file name : bup.bin DEMO_A start address : 06004000 file name : sl2.bin

		vbt		Apr 14, 2019

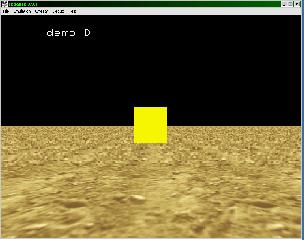

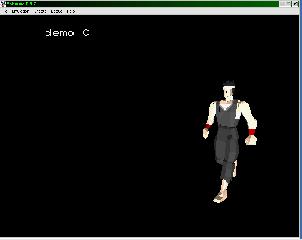

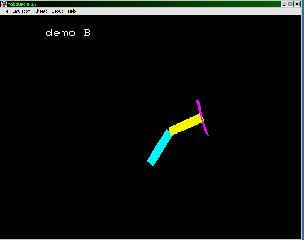

			DEMO_B start address : 06004000 file name : sl3.bin DEMO_C start address : 06004000 file name : sl4.bin DEMO_D start address : 06004000 file name : sl4.bin

		vbt		Apr 21, 2019
			thanks to big evil corp, 2 snasm samples are working DEMO start address : 06004000 file name : slsnasm.bin DEMO2 start address : 06010000 file name : slsnasm2.bin

cafe-alpha

Apr 30, 2019

		vbt said:

I packed the SMPC sample program in an iso file, ready to use in emulator.
BTW vbt, where this sample comes from ?

vbt

Apr 30, 2019

it's in almost all DTS CDs, i didn't notice it before, the filename is SMPCDEM.C en directory (or subdirectory) PERIPHS\SOURCE\

Code:

    /********************************************
*                                          *
*   SMPC SAMPLE PROGRAM Version 0.56a      *
*                                          *
*    file : smpcdem.c                      *
*                                          *
*  author : s.uchida sega cs h/w r&d       *
*                                          *
*    date : 94/11/09                       *
*                                          *
*       rev : a.stern soa npe v.01           *
*      date : 11/30/94                       *
*     rev : a.stern soa v695               *
*    date : 06/12/95                       *
*                                          *
*    Peripheral Port Monitor PPMSPR using  *
*    SMPC Intback Command (Control Mode)   *
*    used to get peripheral and system data*
*                                          *
*      One Intback command per Vblank        *
*    At least two SMPC Interrupts per Vblank
*    Second SMPC Interrupt will have upto  *
*    32bytes of peripheral data            *
*                                          *
********************************************/

		cafe-alpha		Apr 30, 2019
			Wow, great !! I didn't noticed too and was desperately looking in SaturnOrbit folder ... it's sad that theses DTS CDs are not more shared outside of vintage development hardware collector circles. In the header you quoted, the last paragraph itself ("One Intback command per Vblank. At least two SMPC Interrupts per Vblank.") is full of crispy technical informations so I definitely need to check more the other resources there

		vbt		May 1, 2019
			DEVCON96 demos (except SGL) start address : 06004000 if a sg3 file is available with the sample it has to be loaded at the address : 06080000 (before the main binary in emulator)

		vbt		Dec 28, 2019

		Fandu		Jan 12, 2020
			Hey @vbt... , is there any way to take a look at those demos?

vbt

Jan 12, 2020

		Fandu said:

I can share them if needed.

vbt

Jan 18, 2020

		vbt said:

		vbt		May 22, 2021
			maybe they are not all new

rorirub

May 23, 2021

		vbt said:

Is that the demo they used in the 1994 Japanese ads?

		vbt		Mar 13, 2022
			we're famous Curiosities Vol. 14 - SEGA Saturn Sample Program Ver. 1.00 nice blog

ROS

Dec 25, 2023

		vbt said:

To:

From:

		Mr_Da_Greatest		Aug 28, 2024
			Thanks to Jo Engine for compilers and tools Emerald Nova for SGL_Hello_World XL2 for ZTE VBT for topic DTS 1995-06 Both use IP.BIN from ABS folder The IP.BIN has SEC1.BIN, SEC2.BIN and a last file (guessing SMPSYS.C) but not sure added end of IP.BIN APP.BIN start address: 06010000 SMPGFS1.BIN start address: 06010000 TUT160.BIN has to be converted to .BIN from TUT160.ASM and put into cd folder Use sh-coff-objcopy -O binary sh-coff-objcopy -O binary "TUT160.ASM" "TUT160.BIN" It is using very early GFS routines to load in TUT160.BIN
