SegaSaturnShrine | Oct 6, 2017 | ||||
I love the look of Crystal Frost, really cool! | ||||||
 |
WingMantis | Oct 11, 2017 | ||||
Hi, I just signed up the other day. This amazing! Can you enable support for the 1MB or 4MB ram carts to give yourself more to work with? Or have you already? Just because you can't make money off the game doesn't mean it can't get you a good job. This is pretty impressive. I'm not a programmer, but I found an article on dreamcastlive.net that blew me away. I think this could work well for you if you put the game to disc. I posted a quote and a link to the full interview over at https://www.dreamcast-talk.com/forum/viewtopic.php... Check out this thread over here as well (it's not my thread), I am trying to get people with the know-how to test the limits of what the Saturn can do. Appreciate help or feedback: https://segaxtreme.net/threads/screeen-resolution-... | ||||||
 |
itsstillthinking | Oct 11, 2017 | ||
| Apparently RB went very well! im trying to get in contact with the Sonic & Sega Fan Jam to see if we can send a demo there | ||||
 |
XL2 | Oct 11, 2017 | ||||
AFAIK it's automatic. For Retro Barcelona, I didn't get much feedback, so I guess it wasn't that huge, but it's hard to know. | ||||||
 |
koplocolola | Apr 8, 2018 | ||
| hi ! thank you very much for the link | ||||
|
XL2 | Apr 8, 2018 | ||||

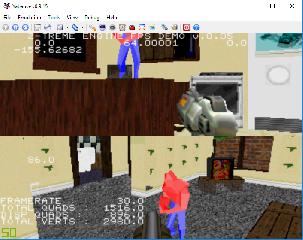

Np! That version is very old (0.02), there is a newer version floating around (0.034), you could try it instead : http://www.seganerds.com/2017/11/30/the-sega-satur... I will try to have a new version ready for Sage 2018, with a new engine, new maps and splitscreen multiplayer. I'm still not done porting to my new engine, so I hope to make it on time! EDIT : Just to show what split screen looks like within the FPS demo. I'm now using 16 color banks for everything except the weapons, so I can't put gouraud shading and I don't have enough CRAM left for pseudo-gouraud (like the Chrome SGL demo). But using color banks mean that I can use VDP2 color calculation effects on sprites, such as transparency, so I could just use the transparency to do depth gouraud, which would be much cheaper than using actual gouraud shading since it's offloaded from the VDP1 to the VDP2.  | ||||||
|
XL2 | Apr 12, 2018 | ||
|
I made a short video of the (still incomplete) splitscreen mode. It works rather well (just don't mind the lack of animation or textures on the players)! I just wish someone had the Netlink library files and documentation somewhere, I could make sure I design the game for compatibility with online multiplayer! #s I don't know if there is a better built-in function, but the solution I found is to manually change the "colno" attribute (depends on the sprite type, but for sprite type 0 it's starting at bit 11) and set bit 14 to 1. It only works with color banks, while with look up table if you set your color calc condition to MSB and your pixel colors have the MSB set to 0, you can do it. I will have to play more with it to see if you can change the color calc ratio using CLUT sprites as the CRAM is super limited (2048 colors max).
| ||||
 |
mrkotfw | May 18, 2018 | ||
| With CLUT, I believe that you can do some sort of extra level of indirection. As in, have the CLUT entries be a color bank code. Is that what you were going for? | ||||
|
mrkotfw | May 21, 2018 | ||||
With quads using a CLUT, instead of the CLUT being RGB values (bit 15 set), specify the color banks. I think that would mitigate your problem where you can't use shading, no? I haven't tested this out myself. | ||||||
|
XL2 | May 21, 2018 | ||||
No, I tried and I can't set different ratios, so you are stuck with Sprite 0 or 1 ratio (so you can't do a smooth fade in). The alternative is to use gouraud shading on paletted sprites, but it's VERY tricky. You only have access to 2048 colors and for memory reasons you probably want 4 or 8 bpp, but with gouraud shading on paletted sprites the gouraud shading will change the index of the palette instead of the actual RGB code, so you need to put all the gradiants you want in your palette. You must also be very careful with your palette's values as you don't want to overflow it (like, your texture's first index should be at 16 since if you remove 16 with the gouraud you don't want to end at < 0) You also only want to use red gouraud (since it will offset one index - at the LSB). It can look more impressive than RGB gouraud shading (for things like metalic or wet rock effects) since you aren't limited to a gradiant from 4 corner colors and the shading can "penetrate" the texture. I considered using it on crystal frost (the ice level from Sonic X-Treme) for the ice, but it might be a bit too much as it would require to hold per vertex normals (takes quite a lot of memory) and do one dot product per quad (it would impact the CPU) - and that's without saying that the color RAM would still be way too limited. | ||||||
|
mrkotfw | May 22, 2018 | ||
| Oh, that makes sense. What a surprise, more restrictions! | ||||
|
XL2 | May 25, 2018 | ||||
I'm trying to play with palettes to fit them in 32 colors palettes and allowing me to use gouraud shading with 8 lightning values (32x8=256) by having only green gouraud (it would increase the color value by 32 since green starts at bit 5) and 8 bpp sprites. It would also have the benefit of allowing me to not use gouraud shading when the lightning is flat (4 vertices have the same normals) for faster rendering. It would allow both gouraud shading with transparency and flat lightning without gouraud. I have yet to try it as I must find a way to cram the colors in 32 colors palettes and keep the number of palettes low (6 max to keep background palettes), but hopefully I'll make it work. | ||||||
 |
vbt | May 25, 2018 | ||
maybe this video can be interresting :
| ||||
|
XL2 | May 25, 2018 | ||||
Yes, I saw it, but I don't want to use his technique for several reasons. I think no Saturn game ever used palette gouraud shading, so just to be the first I want to try that  | ||||||
|
XL2 | Jun 14, 2018 | ||
|
I added vertex animation support to my engine. The vertices are compressed from 12 bytes to 6 each while the normals are compressed from 12 bytes to 1 byte. The animations are interpolated to give a smooth result with few frames. The idle animation is only 2 frames in fact! All the Sonic animations seen here take a grand total of 35 kilobytes, which is quite low for rather smooth animations!
| ||||
|
mrkotfw | Jun 14, 2018 | ||
| How did you go about compressing the normals down to just 1 byte? | ||||
